*Each downlight is supplied with a white bezel as standard. Additional finish options are available to purchase here.
*Free shipping on orders over £50.

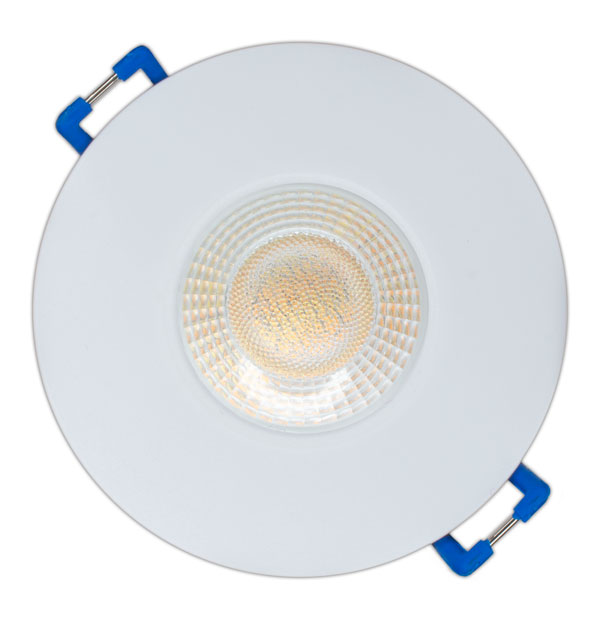

Quickwire-Kosnic Mauna III Fire Rated Downlight
£17.89 (£14.91 Ex VAT)

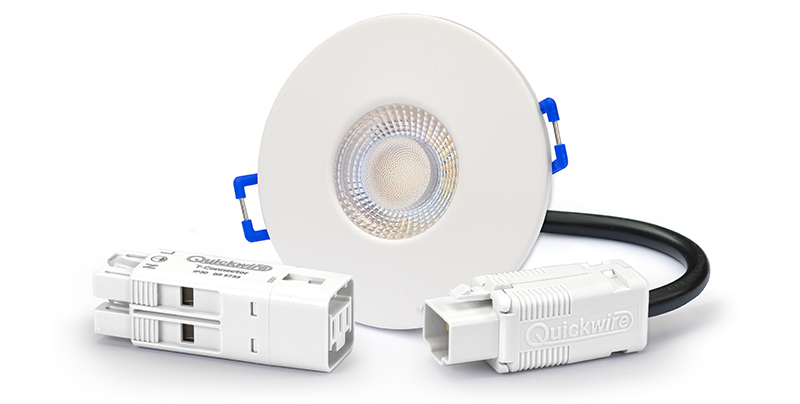

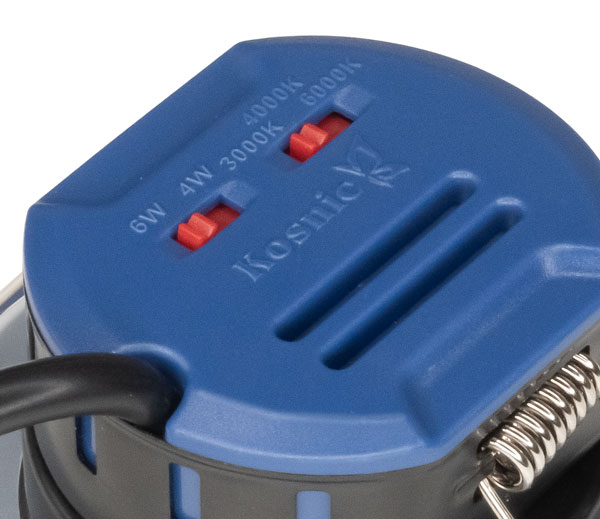

Quickwire have partnered with Konsnic to deliver an industry-trusted, market-leading fire rated downlight that’s as versatile as it is innovative. Each downlight comes factory fitted with a Quickwire T-Connector Plug & Socket. Designed for a 68mm cut-out, this downlight offers two selectable wattage settings (4W/6W) and three adjustable colour temperature settings to suit any environment, while boasting fire ratings of 30, 60, and 90 minutes.
Engineered for durability and performance, it is IP65 rated and mains dimmable, making it ideal for both commercial and residential projects. The unit is supplied with a sleek white bezel as standard, with additional finish options available. Thanks to its clever magnetic bezel system, swapping bezels is a breeze—no twisting lock mechanisms required.
Downlight Product Data
| Warranty | 5 Years |
|---|---|
| Certification(s) | UKCA, CE |
| Colour Finish | White bezel supplied as standard | Optional magnetic bezels available |
Downlight Electrical Data
| Driver | Integrated Dimmable Driver |
|---|---|
| Wattage | 6W/4W |
| Voltage Range | 220-240Vac 50/60Hz |
Downlight Performance Data
| Standards | BS EN ISO 10140-2:2021 and BS EN ISO 10140-3:2021 |
|---|---|
| Efficiency | Up to 132lm/W |
| Kelvin | 3000K | 4000K | 6000K (selectable) |
| Beam Angle | 60° |
| Fire Rated | Yes (30/60/90 min) |
| IP Rating | IP65 |
Plug Specifications
| Rating Supply Voltage | 250V~ 16A (Overcurrent protection limited to 16A) |
|---|---|
| Poles | 3–pole |
| Cable entry | 1 x Flexible (Class 5/6 conductors) or 1 x Rigid (Class 1 conductors) |
| Conductor Size | 0.5mm² – 1.5mm² |
| Termination | Screw terminals |
| Cord Grip size | Max. 8.0mmØ Min. 4.0mmØ |
| Dimensions | 23mm x 24mm x 60mm (fits through a 30mmØ hole) |
| IP Rating | IP20 (When plugged in) |
Socket Specifications
| Rating Supply Voltage | 250V~ 16A (Overcurrent protection limited to 16A) |
|---|---|
| Poles | 3–pole |
| Cable entry | 2 x 1.0mm² – 1.5mm² Twin & Earth CPC Cable (6242Y or 6242B), Solid cores (Class 1) |
| Termination | Utilizes rapid Quickwire push-fit technology |
| Cord Grip size | Fully Automatic |
| Conductor Size | 1.0mm² – 1.5mm² Twin & Earth (CPC) Solid cores, Class 1 (conductors) |
| Dimensions | 23mm x 24mm x 60mm (fits through a 30mmØ hole) |
| IP Rating | IP30 |
