£5.30 – £5.45

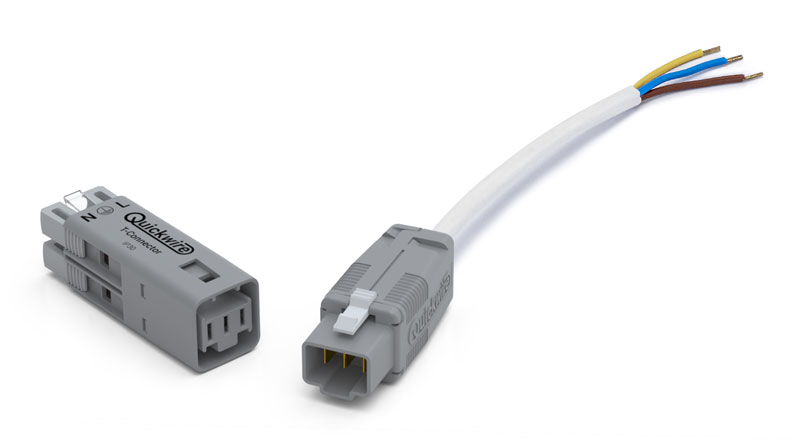

A standard T-Connector plug and socket, prewired with 3-core 0.75mm2 PVC flexible cable. Available in either 15cm or 30cm lengths:
All prewired plugs come with ferruled connections on trailing end. For bespoke lengths or different cable types please contact us for details.
*Free shipping on orders over £40.
*Free removal tool included with each order.
| Rating Supply Voltage | 250V~ 16A (Overcurrent protection limited to 16A) |
|---|---|
| Poles | 3–pole |
| Cable entry | 1 x Flexible (Class 5/6 conductors) or 1 x Rigid (Class 1 conductors) |
| Conductor Size | 0.5mm² – 1.5mm² |
| Termination | Screw terminals |
| Cord Grip size | Max. 8.0mmØ Min. 4.0mmØ |
| Dimensions | 23mm x 24mm x 60mm (fits through a 30mmØ hole) |
| IP Rating | IP20 (When plugged in) |
| Rating Supply Voltage | 250V~ 16A (Overcurrent protection limited to 16A) |
|---|---|
| Poles | 3–pole |
| Cable entry | 2 x 1.0mm² – 1.5mm² Twin & Earth CPC Cable (6242Y or 6242B), Solid cores (Class 1) |
| Termination | Utilizes rapid Quickwire push-fit technology |
| Cord Grip size | Fully Automatic |
| Conductor Size | 1.0mm² – 1.5mm² Twin & Earth (CPC) Solid cores, Class 1 (conductors) |
| Dimensions | 23mm x 24mm x 60mm (fits through a 30mmØ hole) |
| IP Rating | IP30 |
