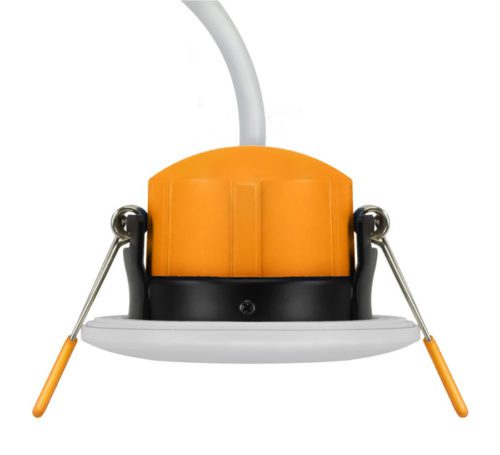

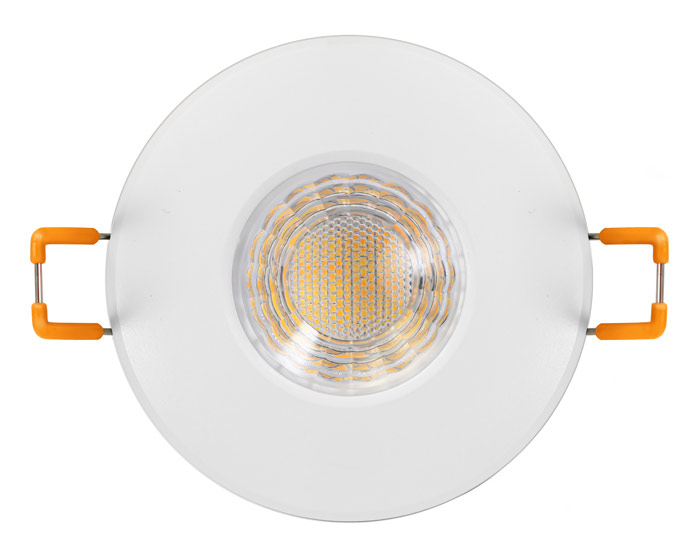

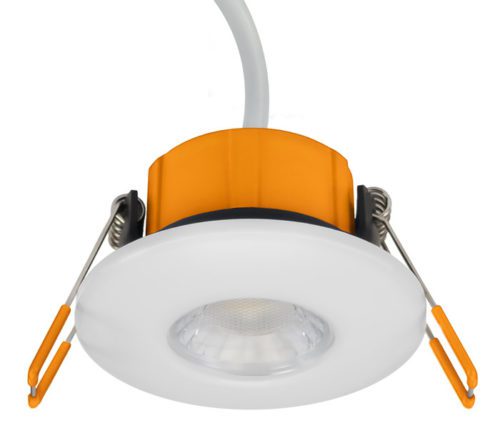

Quickwire-Ricoman Fire Rated Downlight

Name: Quickwire-Ricoman Fire Rated Downlight
SKU: QWDL_RIC
Price: 14.39 GBP
Availability: InStock

£14.39 (£11.99 Ex VAT)

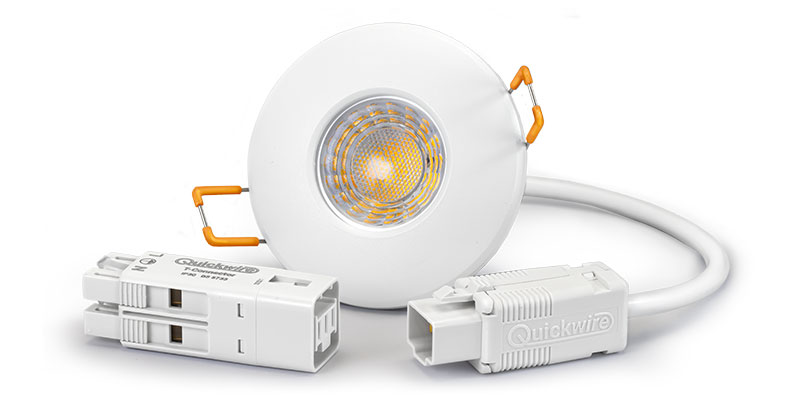

Quickwire have teamed up with Ricoman to provide a market leading fire rated downlight that comes factory fitted with a Quickwire plug & socket.

This unique partnership offers a quality fire/I-Joist rated, colour switchable downlight with unrivalled connection speeds.

*Each downlight is supplied with a white bezel as standard. Additional finish options are available to purchase here.

*Free shipping on orders over £50.

Warranty	5 Years
Certification(s)	UKCA, CE, RoHS
Colour Finish	White as standard \| Chrome Optional \| Brushed Chrome Optional \| Black optional
Construction Material	Polycarbonate
Diffuser Type	TP(a) rated

Lumens	602
Efficacy	~100 Lm/W
Operating Temperature	-20oC to +45oC
Kelvin	3000K \| 4000K (selectable via switch behind bezel)
Beam Angle	60°
Operating Hours	>50000
CRI	>80 Ra
Fire Rated	Yes (30/60/90 min)
IP Rating	IP65 (front) \| IP54 (back)
IK Rating	IK08
Macadam Ellipse	≤6 sdcm
L70 B50	50,000 hours
L80 B50	30,000 hours
L90 B50	15,000 hours

Rating Supply Voltage	250V~ 16A (Overcurrent protection limited to 16A)
Poles	3–pole
Cable entry	1 x Flexible (Class 5/6 conductors) or 1 x Rigid (Class 1 conductors)
Conductor Size	0.5mm² – 1.5mm²
Termination	Screw terminals
Cord Grip size	Max. 8.0mmØ Min. 4.0mmØ
Dimensions	23mm x 24mm x 60mm (fits through a 30mmØ hole)
IP Rating	IP20 (When plugged in)

Rating Supply Voltage	250V~ 16A (Overcurrent protection limited to 16A)
Poles	3–pole
Cable entry	2 x 1.0mm² – 1.5mm² Twin & Earth CPC Cable (6242Y or 6242B), Solid cores (Class 1)
Termination	Utilizes rapid Quickwire push-fit technology
Cord Grip size	Fully Automatic
Conductor Size	1.0mm² – 1.5mm² Twin & Earth (CPC) Solid cores, Class 1 (conductors)
Dimensions	23mm x 24mm x 60mm (fits through a 30mmØ hole)
IP Rating	IP30
