Splitter Junction Box

£4.99 (£4.16Ex VAT)

(Stockist enquiries) email [email protected]
Free shipping on orders over £40

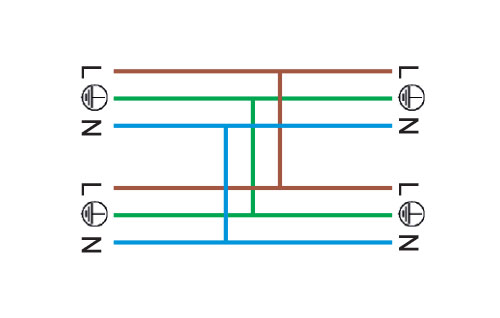

The Quickwire Splitter is for use in conjunction with a Switch & Load. It allows for connection of multiple luminaires.

Connect to the ‘load’ inlet of your Switch & Load to create three separate ‘load’ connections. If your circuit has more than three luminaires then use one inlet on your initial Splitter to connect another Splitter. Repeat as needed.


Rating 16A 250Va.c.

Overcurrent protection limited to 16A

Standards BS EN 60670-22

BS 5733-MF

Conductor Size 1.0mm² – 1.5mm² Twin & Earth (CPC) Solid cores
Class 1 (conductors)
Dimensions 23mm x 31mm x 84mm (cable entries inserted)
IP Rating IP30

Cut and strip the 1.0mm² / 1.5mm² solid core, flat twin and earth cable as shown above:

Step 1

Orientate and align pre-cut cable and insert into appropriate cable entry point. Each wire should guide itself into the correct terminal. Push cable until there is resistance.

Step 2

Check there is a sufficient length of outer cable sheath availabe for clamping.(fig.1) and that an unbroken length of conductor occupies the full extent of the window (fig.2).

Step 3

Push cable until it snaps into place. Repeat process for additional cables. Push in any unused cable entries.

Step 1

Mounting Clip

If required the Quickwire can be fitted onto a surface using the Quickwire mounting clip (order separately). Warning: Do not cover

Step 1

Mount removal tool. Place thumb on thumb grip and using other hand, squeeze side arms so they locate beneath the snaps.

Step 2

Press down on thumb grip and push forward until removal tool stops.

Step 3

Release removal tool and pull out cable.
